The tool is not intended for designing advanced plumbing networks. We do not provide pipes or tubing to place on the plan.
To create your plumbing plan, you can rely on our design assistant: Learn more
Water inlets and outlets

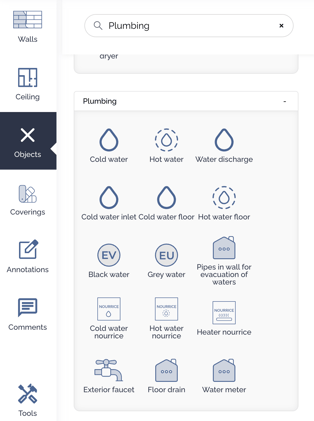

You can find all plumbing-related elements by typing “Plumbing” in the search bar of the Objects tab on the left side of your screen.
Visuary offers several types of water inlets and outlets depending on your needs.
Several of these elements are not freely placed, which means you can move them along the wall, switch sides, flip their orientation, and adjust their rotation, but you cannot position them at an angle or in the middle of a room.
Some items (vanity unit, sink, etc.) automatically include plumbing elements when you place them on the plan, but you can delete them by clicking directly on the symbol of the element, then pressing the Delete key on your keyboard (or the small trash-can icon).
Comply with current standards thanks to the error detector
The error detector is a feature available only with PRO and ENTERPRISE subscriptions.
To help you design your plumbing plan, you can rely on the guidance provided by our design assistant.

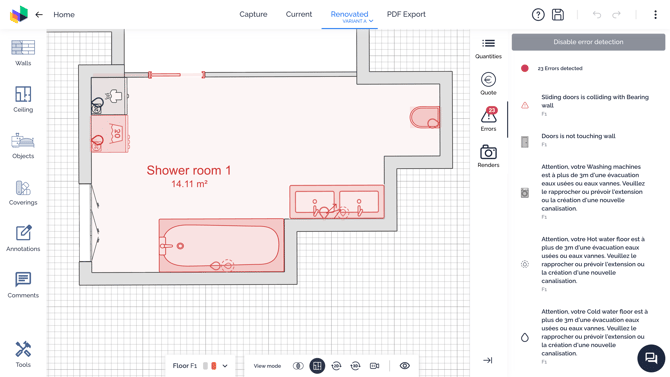

The Errors tab on the right side of your screen will indicate, among other things, the type of inlet or outlet you need and the distance at which it must be placed relative to the fixture: What is the error detector?
